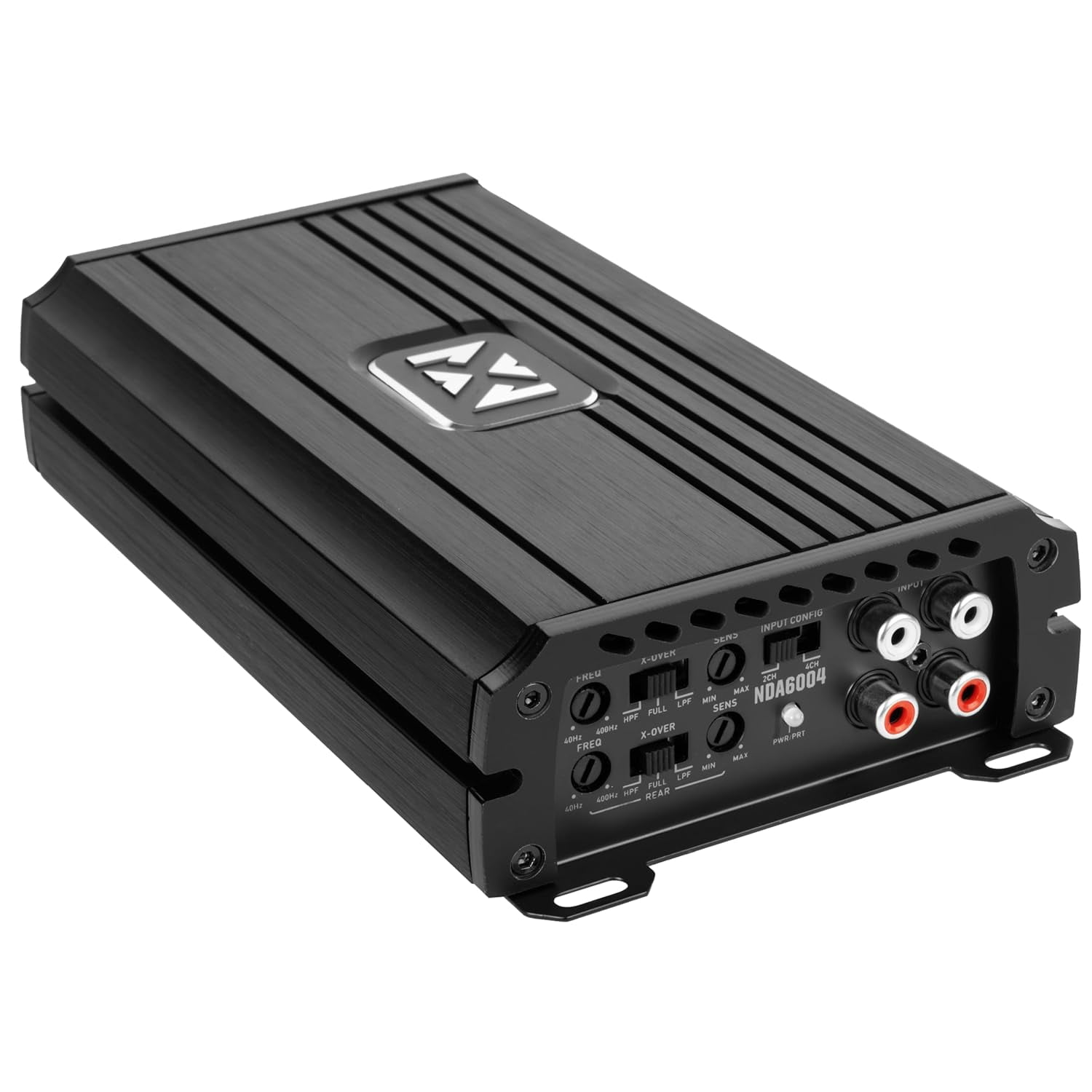

NVX NDA6004 4-Channel Car Amplifier 1200W Peak N-Series Class-D 2 Ohms Stable

The new NVX NDA6004 Car Amplifier delivers 1200W peak power and 600W RMS output, ensuring clear and dynamic sound quality. Supports 4-channel operation with RMS ratings of 100W x 4 at 4 ohms and 160W x 4 at 2 ohms, plus 320W x 2 bridged at 4 ohms. Includes LED power/protect indicators for easy monitoring and 3-way protection circuitry against thermal, overload, and speaker short issues. Features selectable crossover modes (FULL / HPF / LPF) and variable filters (40 - 400 Hz) for precise audio tuning.

• Product Highlights
  • 100 watts x 4 channel @ 4 ohms
  • 160 watts x 4 channel @ 2 ohms
  • Bridged: 320 watts x 2 channel @ 4 ohms
  • Total RMS Power: 600 watts
  • Class D 2 ohms Stable 4-Channel-Channel Amplifier
• Product Details:
  • N-Series Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
  • 4 ohms: 100 watts x 4 channel
  • 2 ohms: 160 watts x 4 channel
  • Bridged: 320 watts x 2 channel @ 4 ohms
  • Total power output: 600 watts

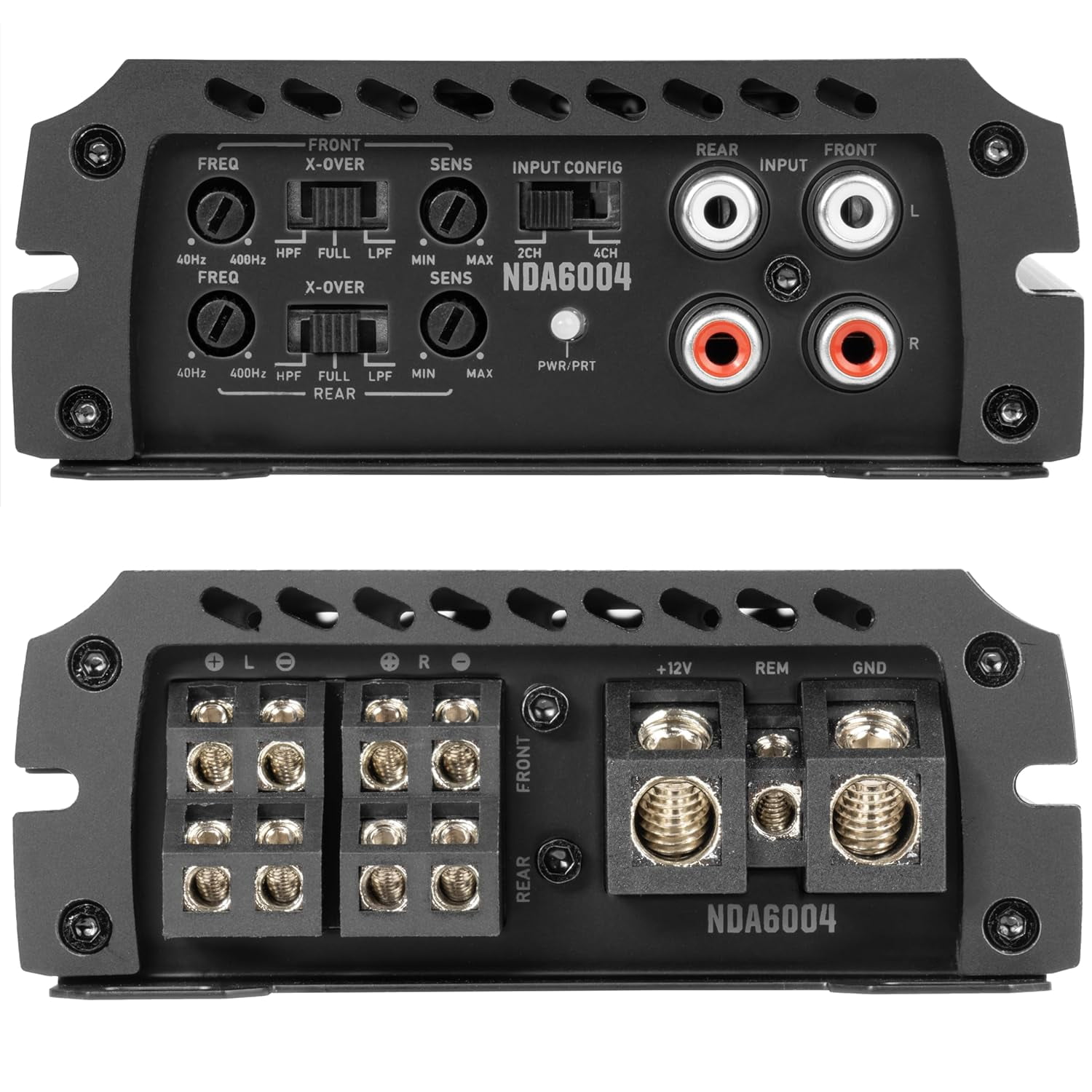

  • LED Power/Protect Light
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
  • Balanced differential inputs eliminate noise picked up by signal cables

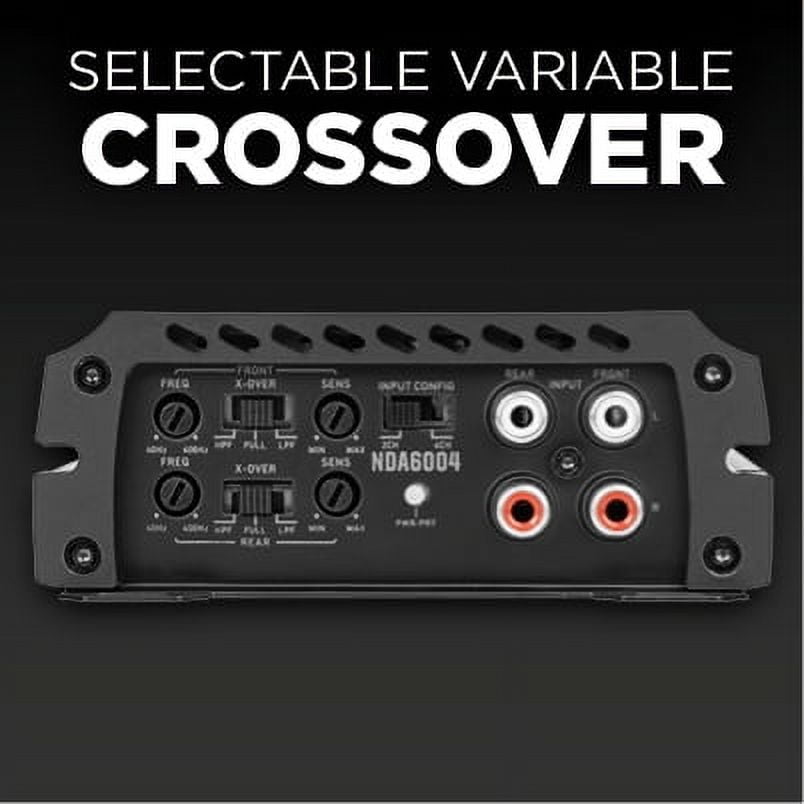

  • Selectable crossover modes: FULL / HPF / LPF
  • Input sensitivity:
  • Low level and High level: 0.2 - 10 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ratio: >96 dB
  • Variable high-pass filter: 40 - 400 Hz
  • Variable low-pass filter: 40 - 400 Hz

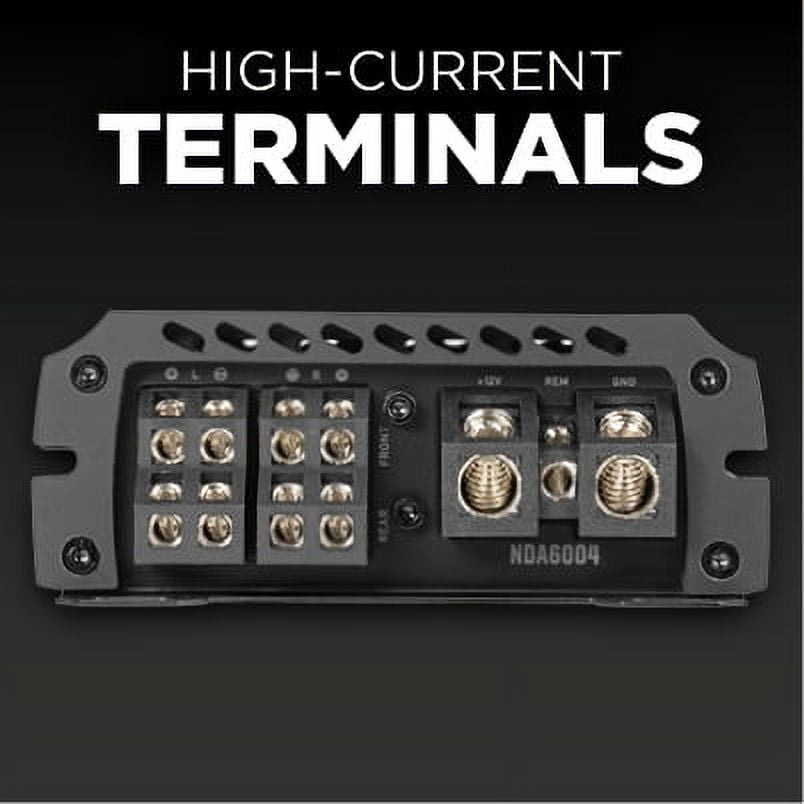

  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8.18" L x 4.42" W x 1.73" H
  • Authorized Internet Dealer
  • 1 Year Manufacturer's Warranty
  • MFR #: NDA6004
• Key Features

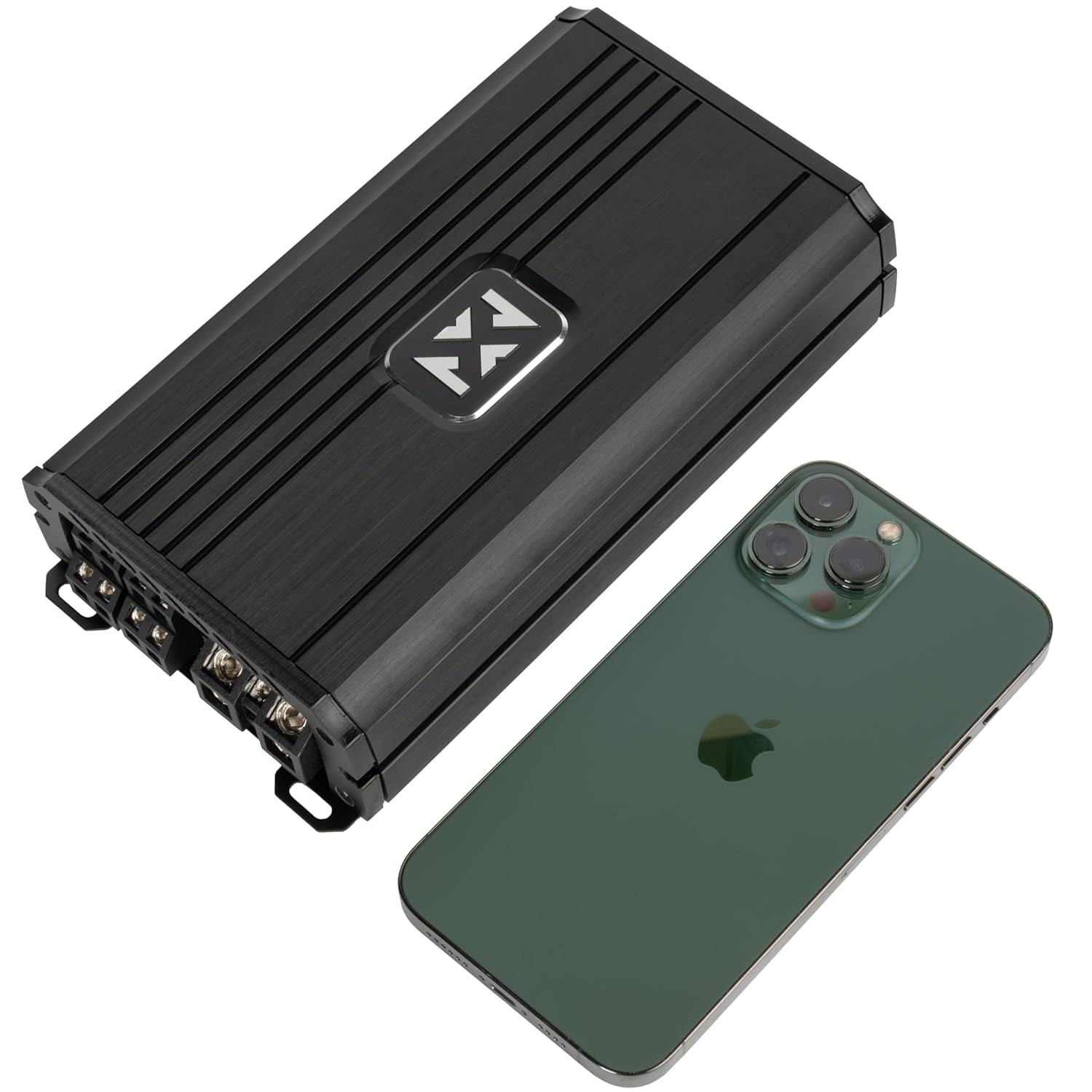

  • Amplifier Key Features - Compact Design, Speaker Level Inputs
• Power Specifications - Full Range Channels
  • RMS Power @ 4 ohms - 100 watts x 4 channel
  • RMS Power @ 2 ohms - 160 watts x 4 channel
  • Bridged RMS Power - 320 watts x 2 channel
• Power Specifications - Full Range Channels
  • Peak Power @ 4 ohms - 200 watts x 4 channel
  • Peak Power @ 2 ohms - 320 watts x 4 channel
  • Bridged Peak/Max Power - 640 watts x 2 channel
• Amplifier Specifications
  • Series - N-Series
  • Amplifier Class - D
  • Number of Channels - 4-Channel
  • Total Peak Power Output - 1200 watts
  • Total RMS Power Output - 600 watts
  • Maximum Input Gauge Size - 4 AWG
  • Minimum Impedance Unbridged - 2 ohms
  • Minimum Impedance Bridged - 4 ohms
  • Frequency Response - 20 - 20000 Hz
  • THD at Rated RMS Power - <0.1%
  • Speaker Level Inputs - Optional (Requires Accessory Adapter)
  • Built-in Crossover - Low-Pass (LP), High-Pass (HP), Full (AP)
  • High-Pass Crossover Frequency - 40 - 400 Hz
  • Low-Pass Crossover Frequency - 40 - 400 Hz
  • Signal-to-Noise Ratio - >96 dB
  • Remote bass/level controller - No
  • Strappable - No
  • Low-Level Input Sensitivity - 0.2 - 10 volts
  • High-Level Input Sensitivity - 0.2 - 10 volts
• What is in the box?
  • Paperwork - User manual

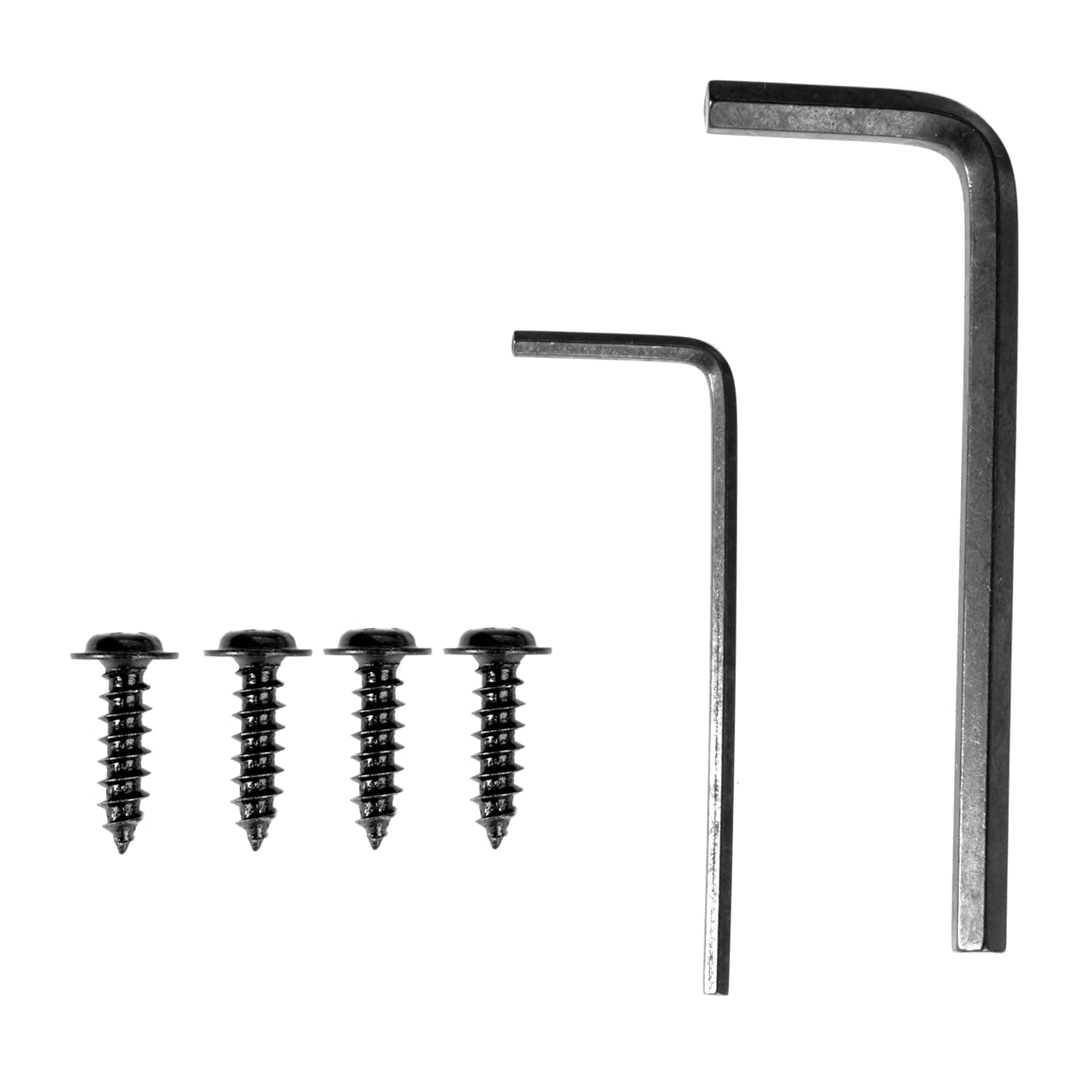

  • WITB: Amplifiers - Amplifier, Mounting screws (4), Allen wrenches (2)
• Warranty and Return Policy
  • Parts Warranty Duration - 1 year
  • Labor Warranty Duration - 1 year
  • Warranty Provider - Manufacturer
